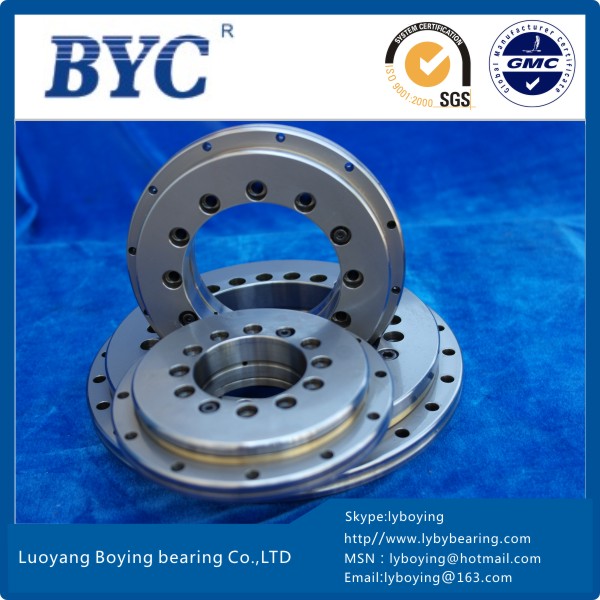

YRTS395 (IDxODxH:395x525x65mm) Rotary Table Bearings| Axial/Radial Turntable bearing
Author： Release time：2016-06-03 Browse times：3139
| YRTS395 (IDxODxH:395x525x65mm) Rotary Table Bearings| Axial/Radial Turntable bearing | ||||||||||||||||||
| A . Rotary Table Bearings Parameters | ||||||||||||||||||
| Brand | BYC | |||||||||||||||||
| Model number | YRTS395 | |||||||||||||||||
| Inner ring | 395mm | |||||||||||||||||
| Outer ring | 525mm | |||||||||||||||||
| Width | 65mm | |||||||||||||||||
| Weight | 33kg | |||||||||||||||||
| Materials | GCR15/GCR15SiMn | |||||||||||||||||
| Precision | P4/P2 | |||||||||||||||||
| Lubrication | Grease lubrication | |||||||||||||||||
| Rotating part | Inner ring/Outer ring | |||||||||||||||||
| Load direction | Multi-load | |||||||||||||||||
| Structure | Integrated Inner/Outer Ring,Mounting Hole in Outer ring | |||||||||||||||||
| B . YRTS395 Rotary Table Bearings Specification Sheet | ||||||||||||||||||
 | ||||||||||||||||||
| Model Number | Main dimensions (mm) | Fixing Hole (Inner ing) | Fixing Hole (Outer ing) | Number of retaining screws | Extraction thread hole | Number of pitches x Angle | ||||||||||||
| d | D | H | H1 | C | D1 | J | J1 | d1 | d2 | a | Num | d3 | Quantity | G | Quantity | |||
| YRTS395 | 395 | 525 | 65 | 42.5 | 20 | 486 | 415 | 505 | 9.3 | 15 | 8.2 | 46 | 9.3 | 45 | 2 | M12 | 3 | 48×7.5° |
| C . YRTS type Rotary Table Bearings Details | ||||||||||||||||||
| Product Features | Axial/radial bearings YRTS series rotary table bearings:Due to their high limiting speeds and very low, uniform frictional torque across the whole speed range, these bearings are particularly suitable for combination with torque motors. | |||||||||||||||||
| Series Model No. | YRTS200,YRTS260,YRTS325,YRTS395,YRTS460,YRTS580 | |||||||||||||||||
| Applications | Product Application ?Precision machine tools ?precision Turntable, NC rotary table ?Rotation part of Machine tools ?Inspection instrument,Medical equipment ?Indexing plate of other precision machines etc | |||||||||||||||||
| www.scsyhbkj.com | ||||||||||||||||||
| www.lybybearing.com | ||||||||||||||||||
| BYC Bearings, Crossed roller bearing , Thin section bearing , Turntable bearing , Roller Bearing ,Bearing ,Slewing bearing ,Robotic bearing ,Rotary Table Bearing , YRT Rotary Table Bearing ,Angular Contact Ball Bearing,Thin section ball bearing | ||||||||||||||||||
