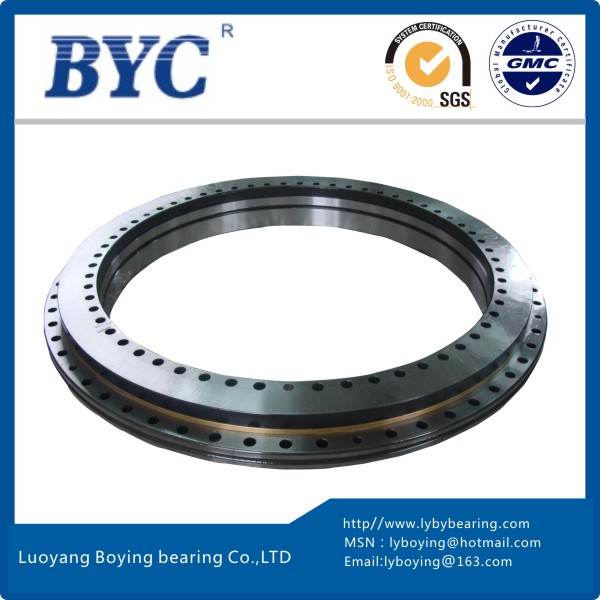

YRT200 (IDxODxH:200x300x45mm) Rotary Table Bearings| Axial/Radial Turntable bearing
Author： Release time：2016-05-30 Browse times：3053
| YRT200 (IDxODxH:200x300x45mm) Rotary Table Bearings| Axial/Radial Turntable bearing | ||||||||||||||||||
| A . Rotary Table Bearings Parameters | ||||||||||||||||||
| Brand | BYC | |||||||||||||||||
| Model number | YRT200 | |||||||||||||||||
| Inner ring | 200mm | |||||||||||||||||
| Outer ring | 300mm | |||||||||||||||||
| Width | 45mm | |||||||||||||||||
| Weight | 9.7kg | |||||||||||||||||
| Materials | GCR15/GCR15SiMn | |||||||||||||||||
| Precision | P4/P2 | |||||||||||||||||
| Lubrication | Grease lubrication | |||||||||||||||||
| Rotating part | Inner ring/Outer ring | |||||||||||||||||
| Load direction | Multi-load | |||||||||||||||||
| Structure | Integrated Inner/Outer Ring,Mounting Hole in Outer ring | |||||||||||||||||
| B . YRT200 Rotary Table Bearings Specification Sheet | ||||||||||||||||||
 | ||||||||||||||||||
| Model Number | Main dimensions (mm) | Fixing Hole (Inner ing) | Fixing Hole (Outer ing) | Number of retaining screws | Extraction thread hole | Number of pitches x Angle | ||||||||||||
| d | D | H | H1 | C | D1 | J | J1 | d1 | d2 | a | Num | d3 | Quantity | G | Quantity | |||
| YRT200 | 200 | 300 | 45 | 30 | 15 | 274 | 215 | 285 | 7 | 11 | 6.2 | 46 | 7 | 45 | 2 | M8 | 3 | 48×7.5° |
| C . YRT type Rotary Table Bearings Details | ||||||||||||||||||
| Product Features | YRT bearings (rotary table bearings) are axial and radial combined cylindrical roller bearings, including two thrust needle roller bearings and a radial cylindrical roller bearing with the combination of axial and radial p reload, For the convenience of transportation and fixing, two or three symmetrical screws are fastened to the two rings in order to prevent rollers and rings generating collisions which influence bearing accuracy. | |||||||||||||||||
| Series Model No. | YRT50 YRT80 YRT100 YRT120 YRT150 YRT180 YRT200 YRT260 YRT325 YRT395 YRT460 YRT580 YRT650 YRT850 YRT950 YRT1030 YRT1200 | |||||||||||||||||
| Applications | Product Application ?Precision machine tools ?precision Turntable, NC rotary table ?Rotation part of Machine tools ?Inspection instrument,Medical equipment ?Indexing plate of other precision machines etc | |||||||||||||||||
