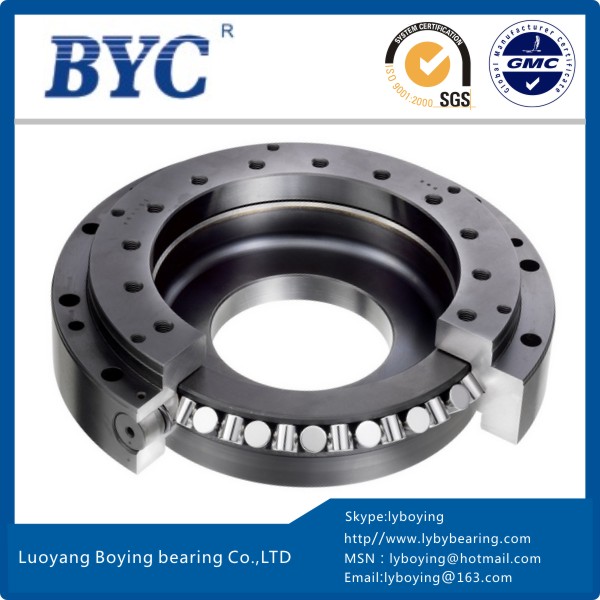

XU080149 (dxDxB:101.6x196.85x22.22mm)Crossed Roller Bearings|Robotic Bearings|BYC
Author： Release time：2016-05-20 Browse times：3080
| XU080149 (dxDxB:101.6x196.85x22.22mm)Crossed Roller Bearings|Robotic Bearings|BYC | |||||||||||||
| A . Crossed Roller Bearings Parameters | |||||||||||||
| Brand- | BYC | ||||||||||||
| Model number- | XU080149 | ||||||||||||
| Inner ring(mm)- | 101.6 | ||||||||||||
| Outer ring(mm)- | 196.85 | ||||||||||||
| Width(mm)- | 22.22 | ||||||||||||
| Weight(Kg)- | 3.6 | ||||||||||||
| Materials- | GCR15/GCR15SiMn | ||||||||||||
| Precision grade- | P5/P4/P2 | ||||||||||||
| Lubrication type- | Grease lubrication | ||||||||||||
| Rotating part- | Inner ring/Outer ring | ||||||||||||
| Load direction- | Multi-load | ||||||||||||
| Structure- | Integrated Inner/Outer Ring,Mounting Hole in Outer ring | ||||||||||||
| B . XU080149 Crossed Roller Bearings Specification Sheet | |||||||||||||
 | |||||||||||||
| Model Number | Main dimensions | Fixing Hole (Outer ing) | Fixing Hole (Inner ing) | Basic load rating (Axial) | Basic load rating (Radial) | Weight Kg | |||||||
| Inner ring d(mm) | Outer ring D(mm) | Roller pitch circle dp(mm) | Width B (mm) | φLa | Number na | φLi | Number ni | Ca KN | Coa KN | Cr KN | Cor KN | ||
| XU080149 | 101.6 | 196.85 | 149.6 | 22.22 | 177.8 | 16-φ6.9 | 115.8 | 16-φ6.9 | 63 | 66 | 40 | 32.5 | 3.6 |
| C . XU type Crossed Roller Bearings Details | |||||||||||||
| Product Features | BYC Crossed roller bearings are lightweight, compact bearings with thinnest possible inner and outer rings with high rigidity, because of its vertical arrangement of cylindrical rollers with a 90°V groove through the separate spacers in the deep groove rolling surface. This special design allows just one bearing to carry loads in all directions including radial, axial and moment loads. | ||||||||||||
| Series Introduction | XU special type is a bearing with integrated inner and outer ring. It is being used in cases where high rotational accuracy of both the inner and outer rings is required. | ||||||||||||
| Series Model No. | XU050077,XU060094,XU060111,XU080120,XU080149,XU120179,XU120222,XU160260,XU080264,XU160405,XU080430,XU300515 | ||||||||||||
| Applications | Product Application ?Industrial Robotic arm,Reducer drive ?precision Turntable,NC rotary table ?Rotation part of Machine tools ?Inspection instrument,Medical equipment ? Aviation equipment,Military radar etc | ||||||||||||
| D . Installation for Cross roller Bearings | |||||||||||||
| Installation for Cross roller Bearings-Click Here | |||||||||||||
